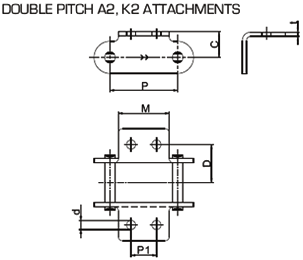

Çift Z A2, K2 Ekler-DIN/ASA
ANSI B 29.4 Outer attachments for American series
| Base Chain Model |
ROMBO Chain No | Pitch (P) |
Thickness (t) |
M | d | D | C | P1 |
| C 2040 | 32-A 08A 01 K2 01 | 25.40 | 1.50 | 19.10 | 3.33 | 12.70 | 9.12 | 9.52 |
| C2042 | ||||||||
| C2050 | 32-A 102 01 SK2 | 31.75 | 2.00 | 23.80 | 5.08 | 15.83 | 11.13 | 11.91 |
| C2052 | ||||||||
| C2060 | 32-A 121 01 SK2 | 38.10 | 2.39 | 28.60 | 5.08 | 21.44 | 14.68 | 14.30 |
| C2062 | ||||||||
| C2060H | 32-A 122 01 K2 01 | 38.10 | 3.15 | 28.60 | 5.08 | 21.44 | 14.68 | 14.30 |
| C2062H | ||||||||
| C2080 | 32-A 161 01 K2 01 | 50.80 | 3.15 | 38.10 | 6.63 | 27.79 | 19.05 | 19.05 |
| C2082 | ||||||||
| C2080H | 32-A 162 01 K2 05 | 50.80 | 4.00 | 38.10 | 6.63 | 27.79 | 19.05 | 19.05 |
| C2082H | ||||||||
| C2100 | 32-A 201 01 K2 01 | 63.50 | 4.00 | 47.60 | 8.20 | 33.32 | 23.42 | 23.83 |
| C2102 | ||||||||
| C2100H | 32-A 202 01 K2 01 | 63.50 | 4.70 | 47.60 | 8.20 | 33.32 | 23.42 | 23.83 |
| C2102H | ||||||||
| C2120 | 32-A 241 01 K2 01 | 76.20 | 4.70 | 57.20 | 9.80 | 39.67 | 27.79 | 28.58 |
| C2122 | ||||||||
| C2120H | 32-A 242 01 K2 01 | 76.20 | 5.56 | 57.20 | 9.80 | 39.67 | 27.79 | 28.58 |
| C2122H | ||||||||
| C2160 | 32-A 321 01 K2 01 | 101.60 | 5.56 | 76.20 | 13.11 | 52.37 | 36.53 | 38.10 |
| C2162 | ||||||||
| C2160H | 32-A 322 01 K2 01 | 101.60 | 7.14 | 76.20 | 13.11 | 52.37 | 36.53 | 38.10 |
A2 - Attachment on One side
K2- Attachment on Both sides
Note : Please select the required attachment either A2 or K2 and specify the frequency of attachments
while ordering
